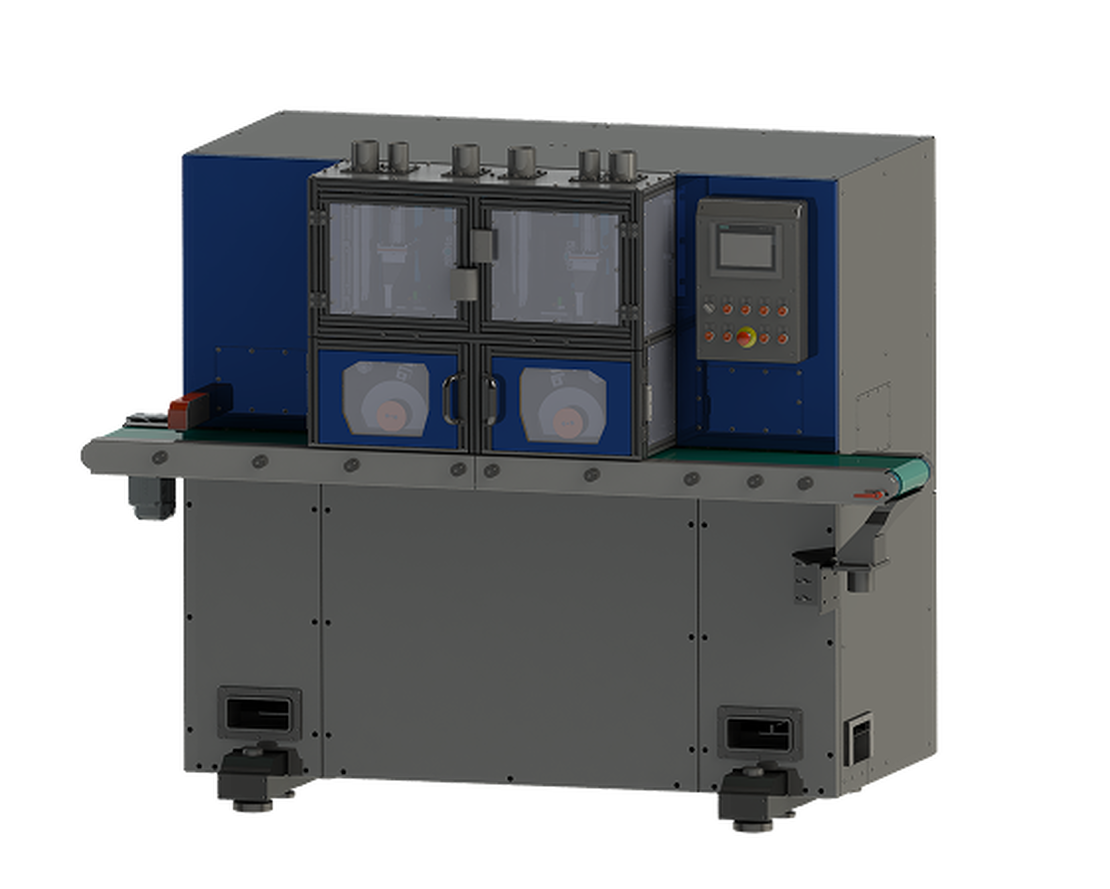

Clutch disc polishing machine
Specification
Maximum component diameter
245 mm
Component thickness range
0.8–4 mm
Maximum operating speed
30 m/min
Frame
Rigid welded frame, thermally stress-relieved and finish-machined.
Spindles
Two electric spindles with cast-iron housings.
Adjustment
Two independent servo-driven systems for positioning the polishing rollers.
Lubrication system
Hydraulic spindle-component lubrication with oil-pressure, oil-temperature and filter-contamination monitoring.
Conveyor
Workpiece conveyor with a magnetic table.
Additional system
Diamond dressing units for automatic correction of the polishing-roller surfaces.
Guards
Protective enclosure around the rotating rollers, with integrated work-area lighting.
Control system
Siemens S7
Servo drives
Siemens
AC motors
SEW
