Marking stations

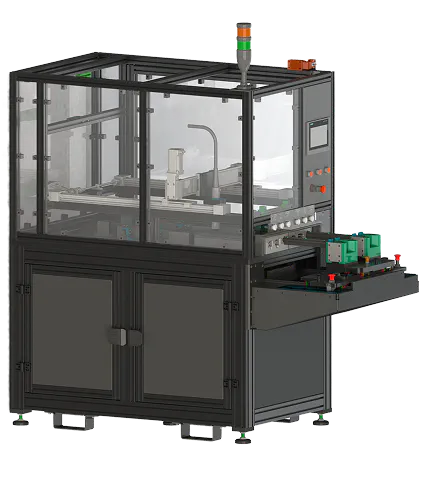

Automotive body seal marking station
Specification
Maximum number of references
20 variants (10 RH + 10 LH)
Print content
Alphanumeric description and Data Matrix code
Print colour
White
Inspection scope
Seal shape, cross-section and length.
Inspection systems
Detection and verification of seal retaining clips.
Error prevention
Protection against operator left/right selection errors.
Control system
Siemens S7
Print head
The head is moved by a two-axis Cartesian robot to ensure consistent part marking.
Stabilisation
The seal is locked in the positioning nest during marking.
Construction
Compact, rigid and modular aluminium-profile structure reinforced with steel plates in the lower section.
Service access
The pigment printer is installed in a visible, readily accessible location for maintenance.
